Description

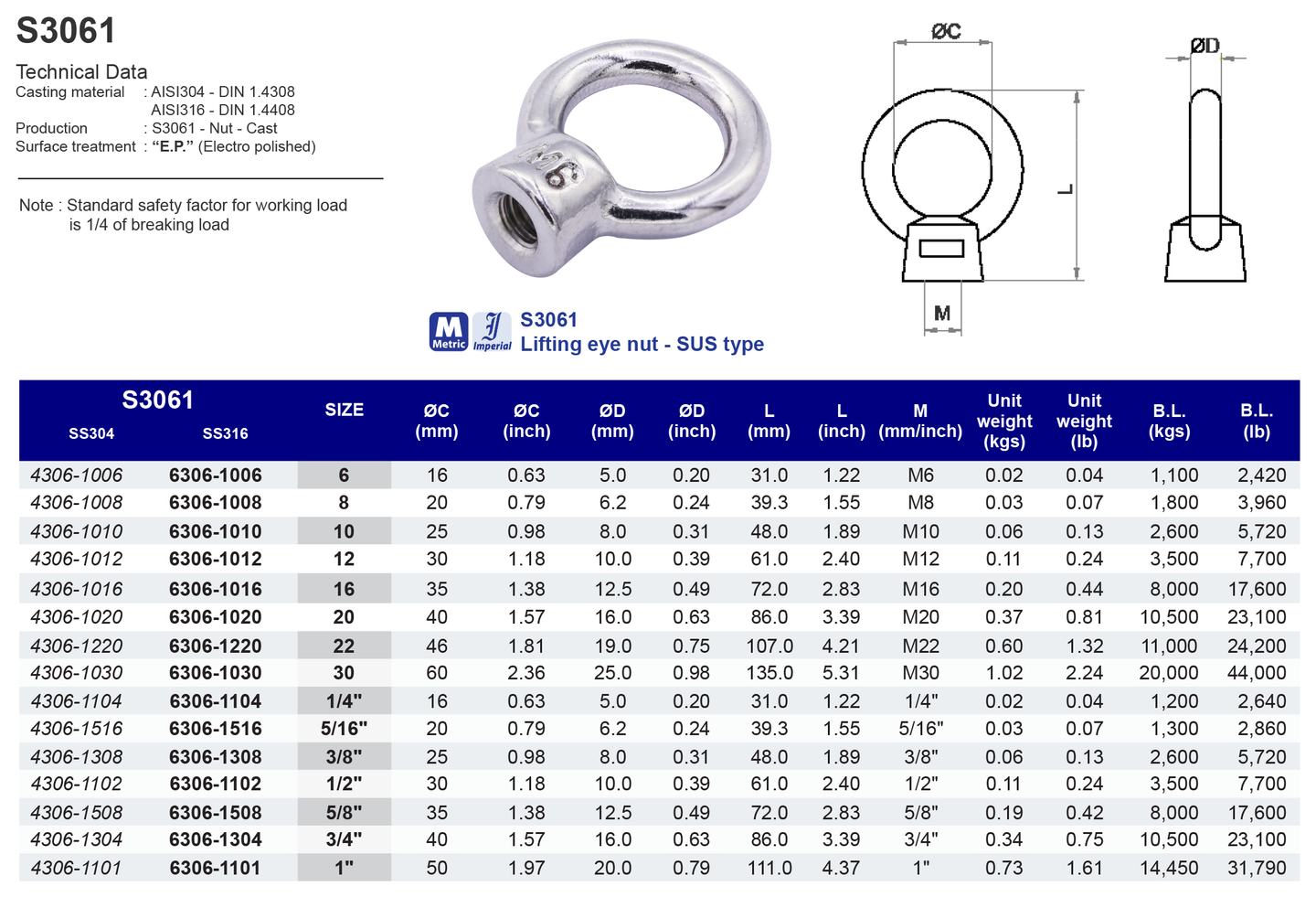

Technical Data:
Casting Material: AISI304 - DIN 1.4308/
AISI316 - DIN 1.4408
Production: S3061 - Nut - Cast
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
S3061

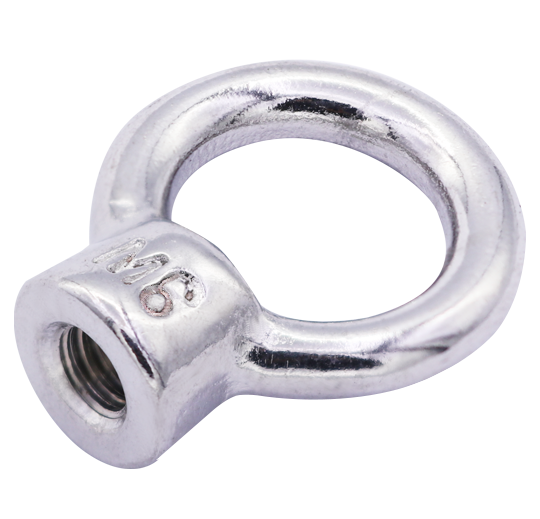

Lifting eye nut - SUS type
316 ss
| SS316 | Size | ØC (mm) | ØD (mm) | L (mm) | M (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63061006 | 6 | 16 | 5 | 31 | M6 | 0.02 | 1,100 |
| 63061008 | 8 | 20 | 6.2 | 39.3 | M8 | 0.03 | 1,800 |
| 63061010 | 10 | 25 | 8 | 48 | M10 | 0.06 | 2,600 |
| 63061012 | 12 | 30 | 10 | 61 | M12 | 0.11 | 3,500 |
| 63061016 | 16 | 35 | 12.5 | 72 | M16 | 0.20 | 8,000 |
| 63061020 | 20 | 40 | 16 | 86 | M20 | 0.37 | 10,500 |
| 63061220 | 22 | 46 | 19 | 107 | M22 | 0.60 | 11,000 |
| 63061030 | 30 | 60 | 25 | 135 | M30 | 1.02 | 20,000 |
| SS316 | Size | ØC (inch) | ØD (inch) | L (inch) | M (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63061104 | 1/4" | 0.63 | 0.20 | 1.22 | 1/4" | 0.04 | 2,640 |
| 63061516 | 5/16" | 0.79 | 0.24 | 1.55 | 5/16" | 0.07 | 2,860 |
| 63061308 | 3/8" | 0.98 | 0.31 | 1.89 | 3/8" | 0.13 | 5,720 |
| 63061102 | 1/2" | 1.18 | 0.39 | 2.40 | 1/2" | 0.24 | 7,700 |
| 63061508 | 5/8" | 1.38 | 0.49 | 2.83 | 5/8" | 0.42 | 17,600 |
| 63061304 | 3/4" | 1.57 | 0.63 | 3.39 | 3/4" | 0.75 | 23,100 |
| 63061101 | 1" | 1.97 | 0.79 | 4.37 | 1" | 1.63 | 31,790 |
