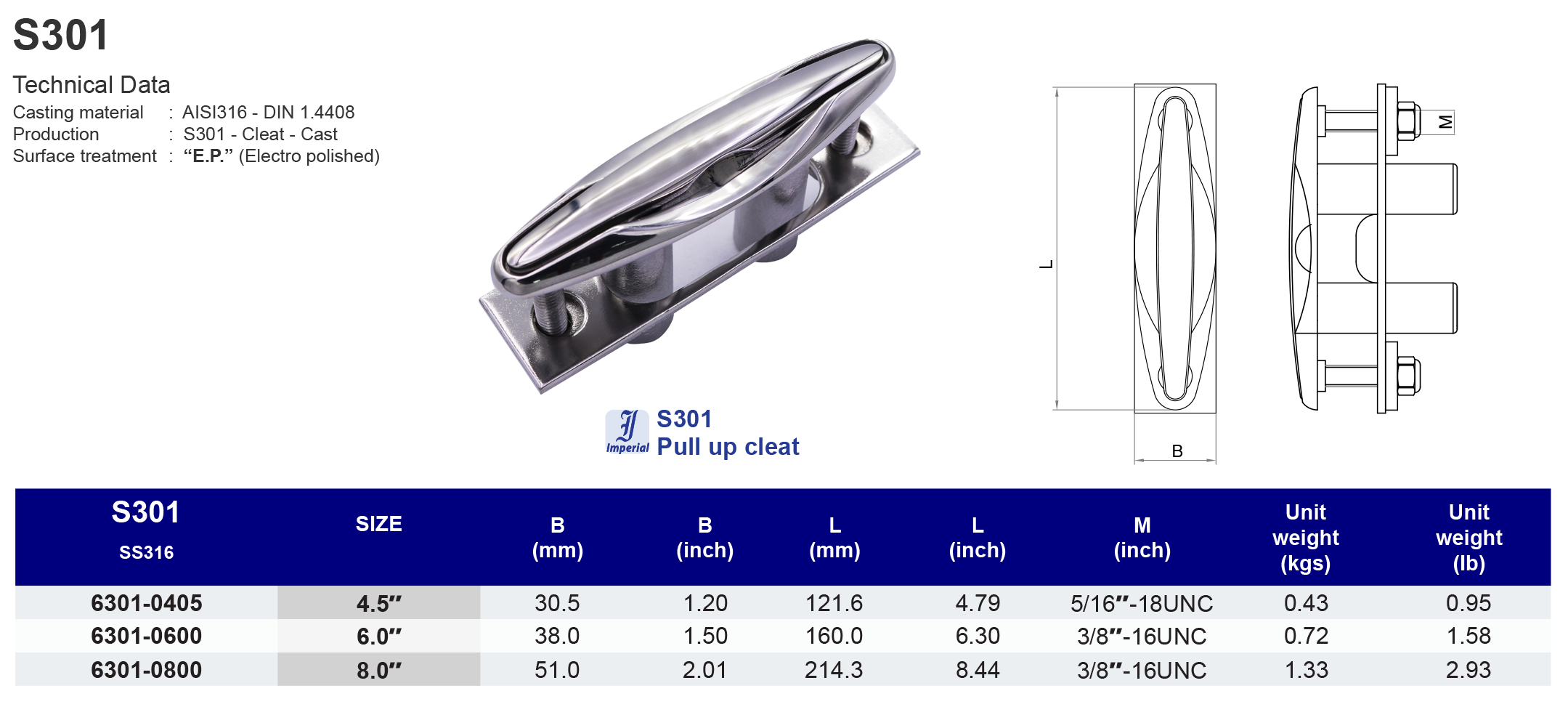

Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S301 - Cleat - Cast
Surface Treatment:“E.P.” (Electro polished) DATA SHEET DOWNLOAD
Model
S301
Pull up cleat
316 ss
![Kinzi 316 Kinzi 316](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/316-ss.png)
![S301 drawing S301 drawing](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S301_DiagramV1.png)

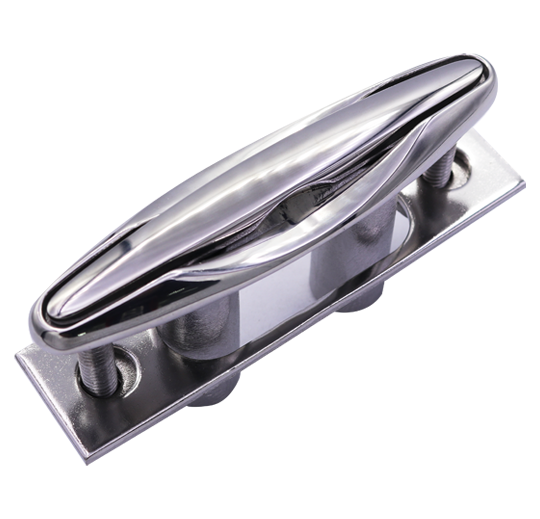

![S301 image S301 image](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S301_ImageV1.png)
SS316 | SIZE | B (mm) | L (mm) | M (inch) | Unit weight (kgs) |
---|---|---|---|---|---|
63010405 | 4.5" | 30.5 | 121.6 | 5/16"-18UNC | 0.43 |
63010600 | 6.0" | 38 | 160 | 3/8"-16UNC | 0.72 |
63010800 | 8.0" | 51 | 214.3 | 3/8"-16UNC | 1.33 |
SS316 | SIZE | B (inch) | L (inch) | M (inch) | Unit weight (lb) |
---|---|---|---|---|---|
63010405 | 4-1/2" | 1.2 | 4.79 | 5/16"-18UNC | 0.95 |
63010600 | 6.0" | 1.5 | 6.3 | 3/8"-16UNC | 1.58 |
63010800 | 8.0" | 2.01 | 8.44 | 3/8"-16UNC | 2.93 |
