Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Production:
S212 - E1 - 100 - Swivel eye - Cast
Sheave - Cast
Block - Cast
Surface Treatment:
“E.P.” (Electro polished)
Note : Standard safety factor for working load
is 1/4 of breaking load.

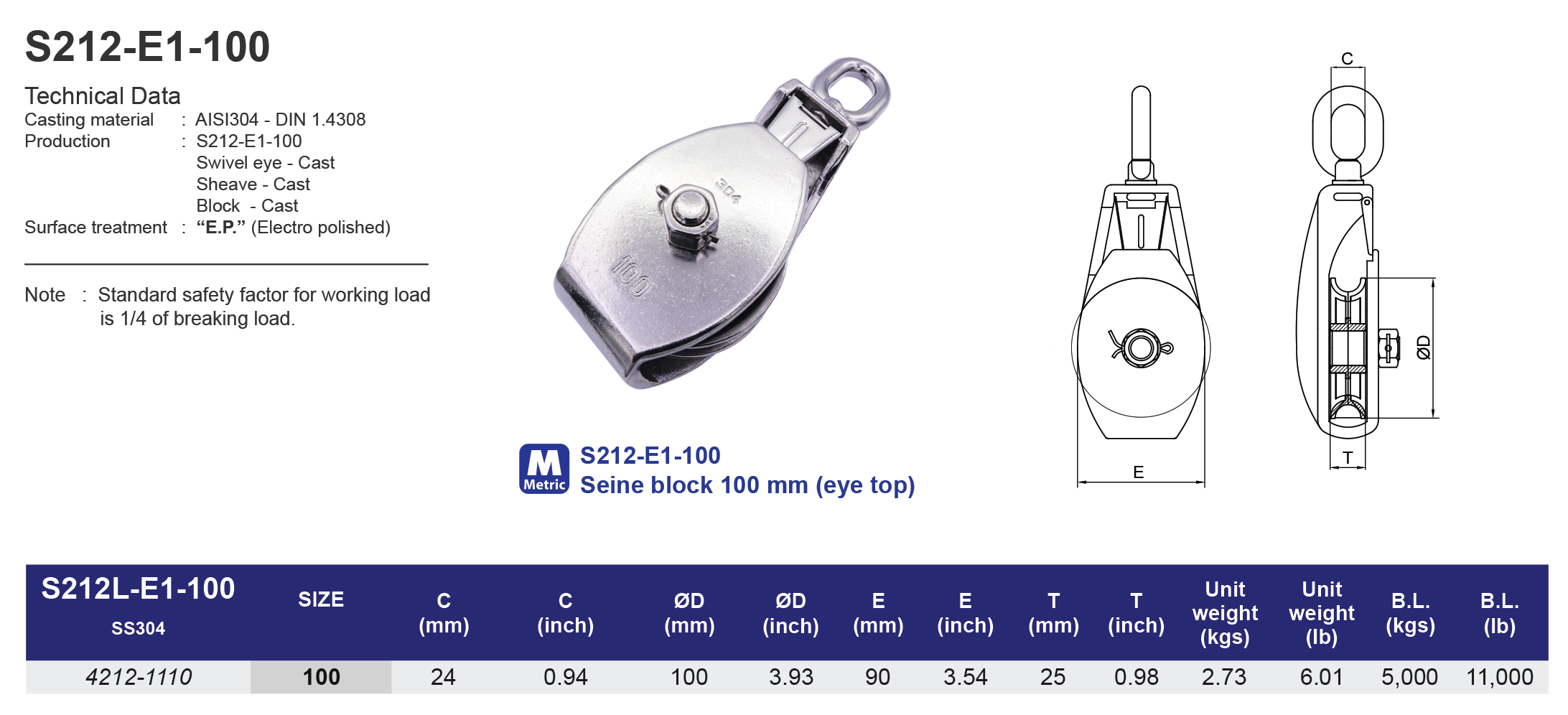

Model
S212-E1-100
Seine block 100 mm (eye top)
304 ss
| SS304 | SIZE | B (mm) | C (mm) | ØD (mm) | E (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 42121110 | 100 | 43 | 24 | 100 | 90 | 17 | 2.73 | 5,000 |
| SS304 | SIZE | B (inch) | C (inch) | ØD (inch) | E (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 42121110 | 4" | 1.69 | 0.94 | 3.93 | 3.54 | 0.67 | 6.01 | 11,000 |
