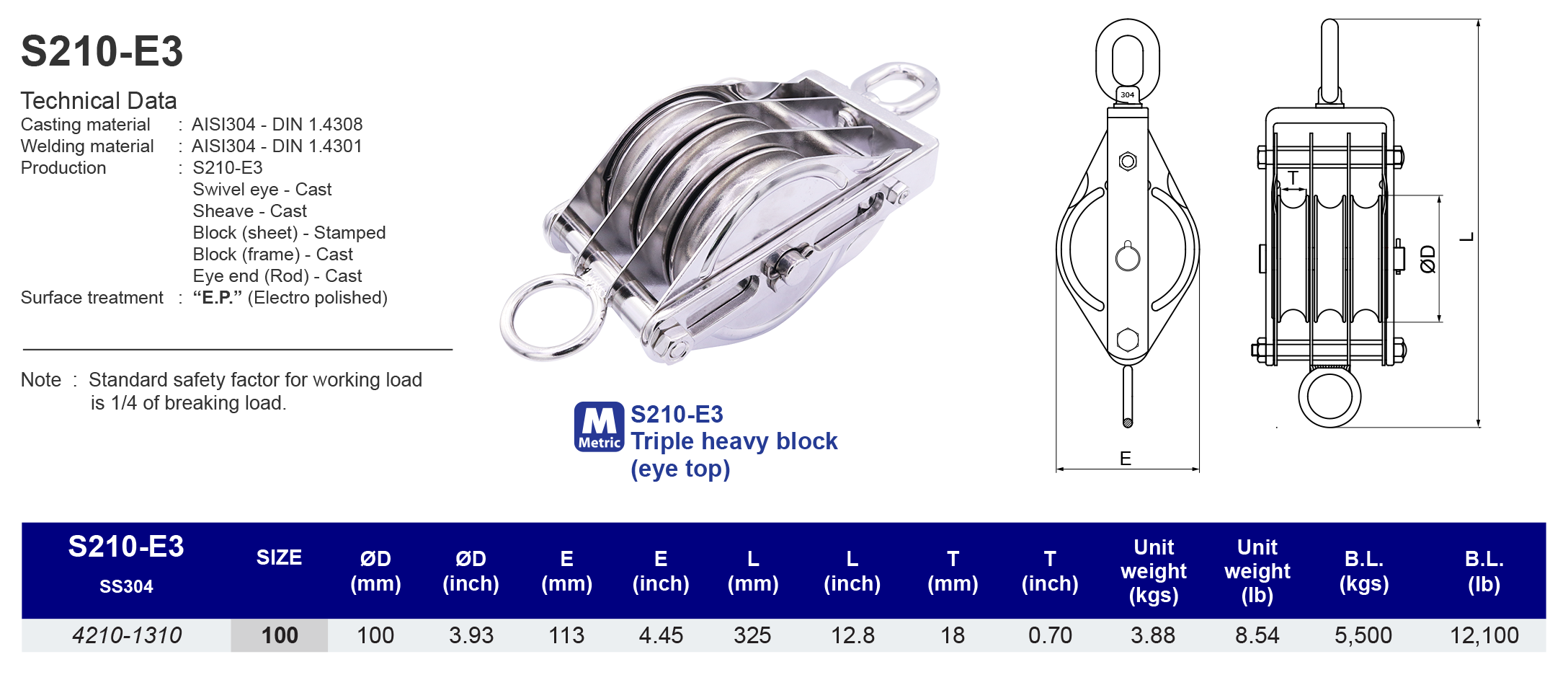

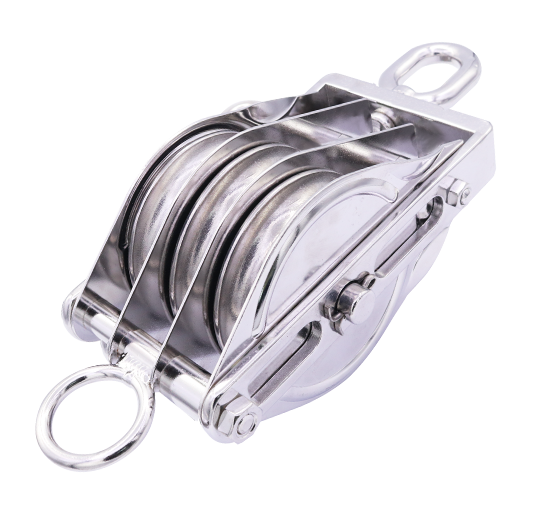

S210-E3 Triple Heavy Block (eye top) - 304

Technical Data:
Casting Material: AISI304 - DIN 1.4308
Welding Material: AISI304 - DIN 1.4301
Production:
S210 - E3 - Swivel eye - Cast
Sheave - Cast
Block (sheet) - Stamped
Block (frame) - Cast
Eye end (Rod) - Cast
Surface Treatment:"E.P." (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load.
