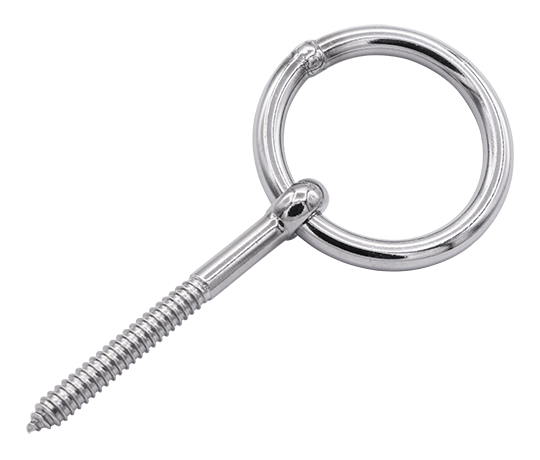

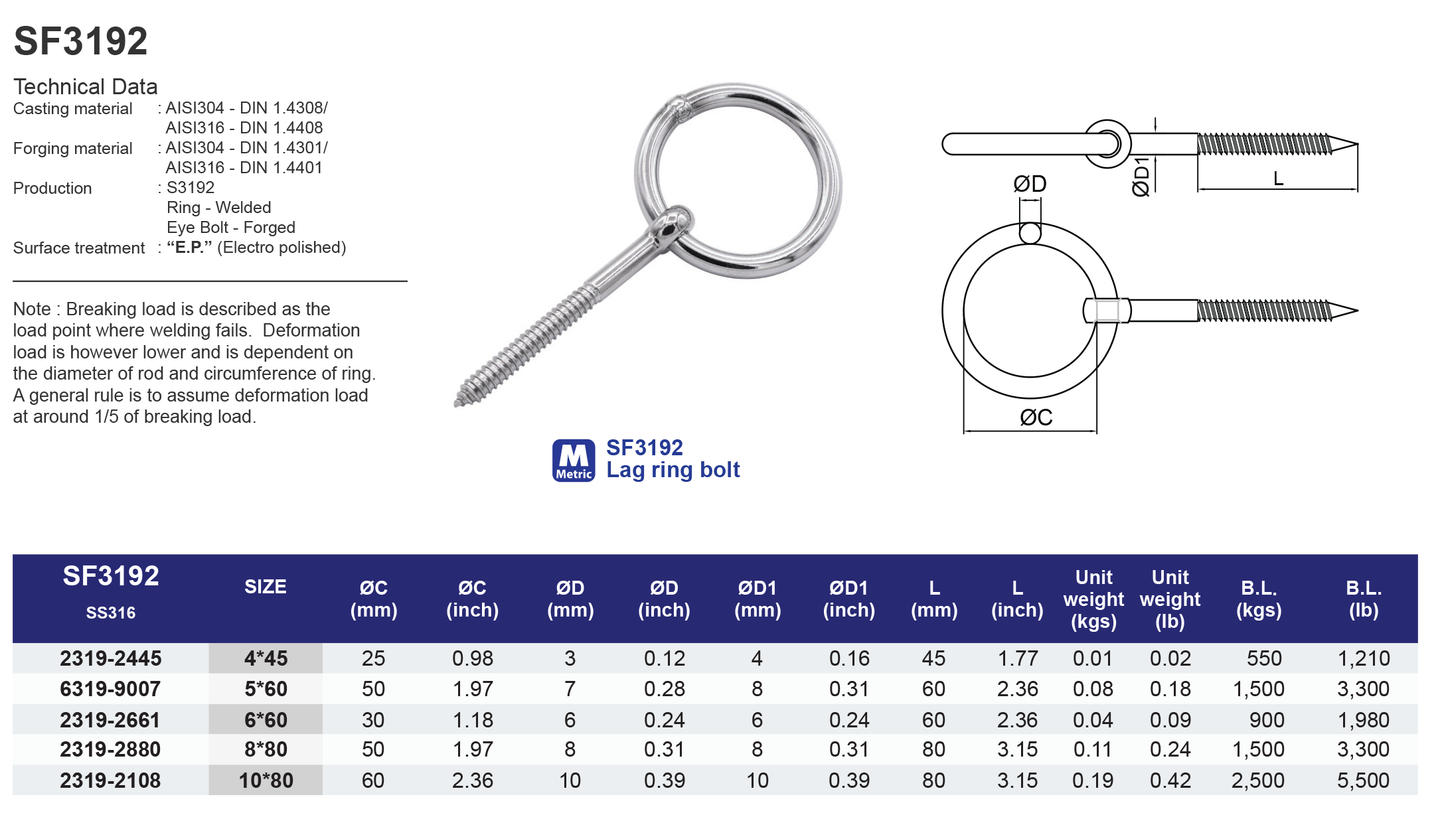

SF3192 Lag ring bolt

Technical Data:
Casting Material: AISI304 - DIN 1.4308/
                            AISI316 - DIN 1.4408
Forging Material: AISI304 - DIN 1.4301/
                            AISI316 - DIN 1.4401
Production: S3192 - Ring - Welded
                                Eye Bolt - Forged
Surface Treatment: “E.P.” (Electro polished)



Note : Breaking load is described as the
load point where welding fails. Deformation
load is however lower and is dependent on
the diameter of rod and circumference of ring.
A general rule is to assume deformation load
at around 1/5 of breaking load.
