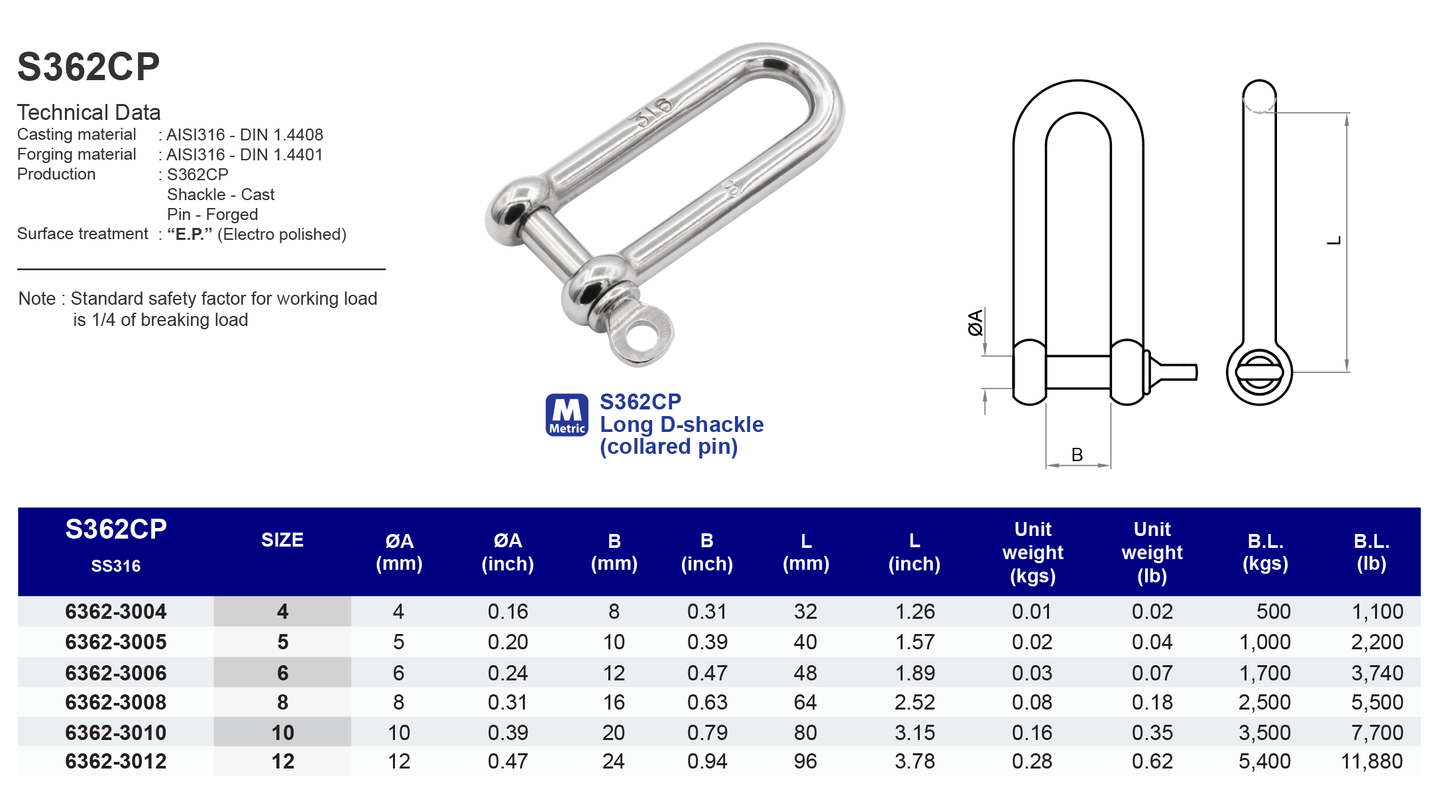

S362CP Long D-shackle (collared pin)

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: S362CP - Shackle - Cast
                                  Pin - Forged
Surface Treatment: “E.P.” (Electro polished)                                                                    Note : Standard safety factor for working load
is 1/4 of breaking load

 DATA SHEET DOWNLOAD
