Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Sheet: AISI316 - DIN 1.4401
Production: S361R - Shackle - Cast
Pin - Forged
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load

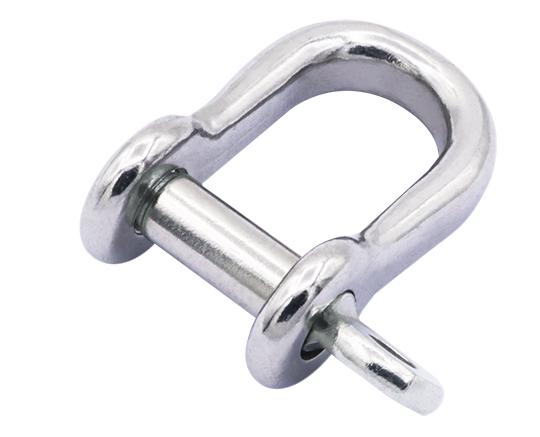

Model
S361R
Light D-shackle
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63612005 | 5 | 5 | 12 | 31.2 | 0.01 | 950 |
| 63612006 | 6 | 6 | 13 | 37.0 | 0.02 | 1,500 |
| 63612008 | 8 | 8 | 18 | 46.5 | 0.05 | 2,600 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63612005 | 3/16" | 0.20 | 0.47 | 1.23 | 0.03 | 2,090 |
| 63612006 | 1/4" | 0.24 | 0.51 | 1.46 | 0.04 | 3,300 |
| 63612008 | 5/16" | 0.31 | 0.71 | 1.83 | 0.11 | 5,720 |
