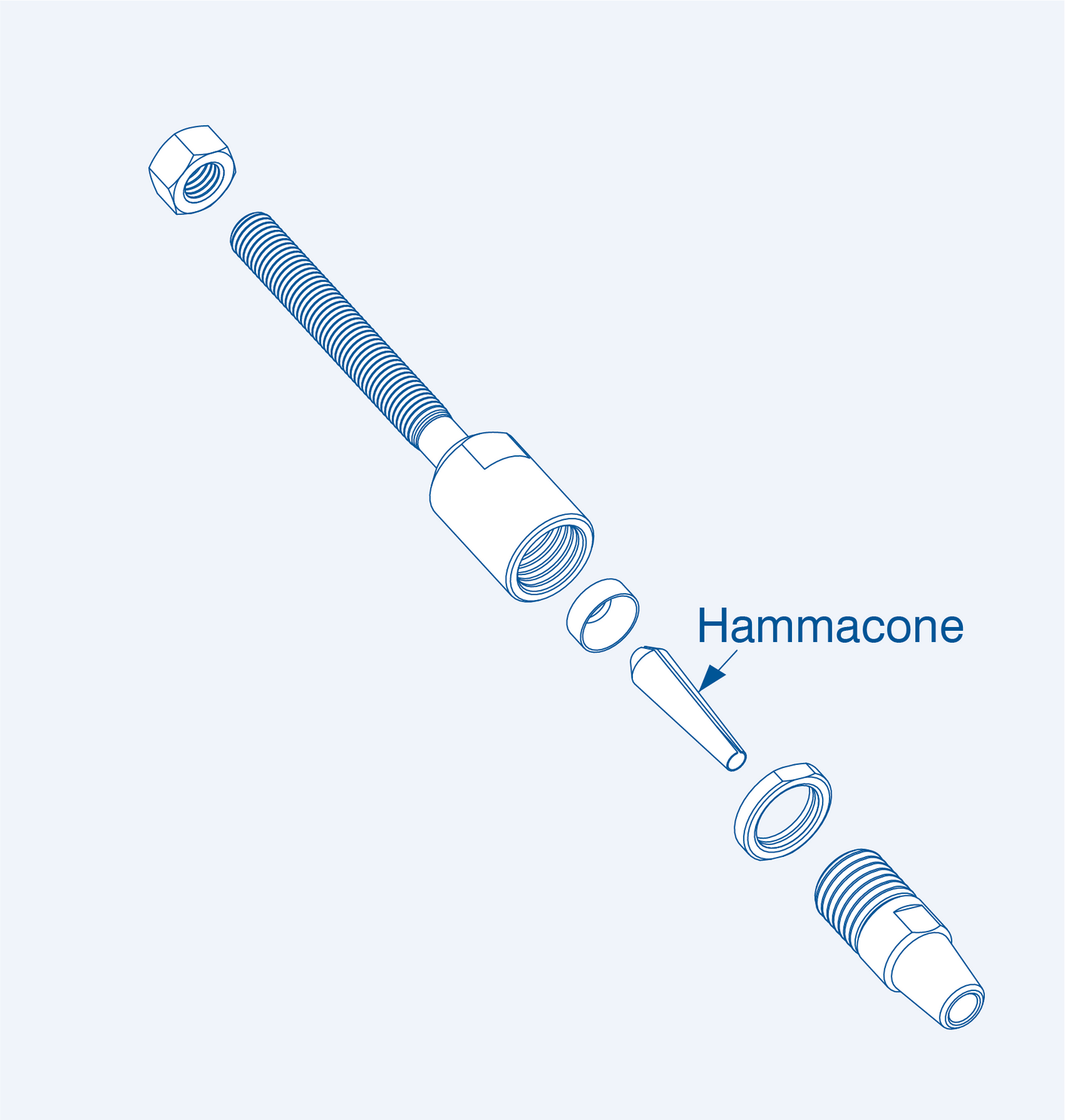

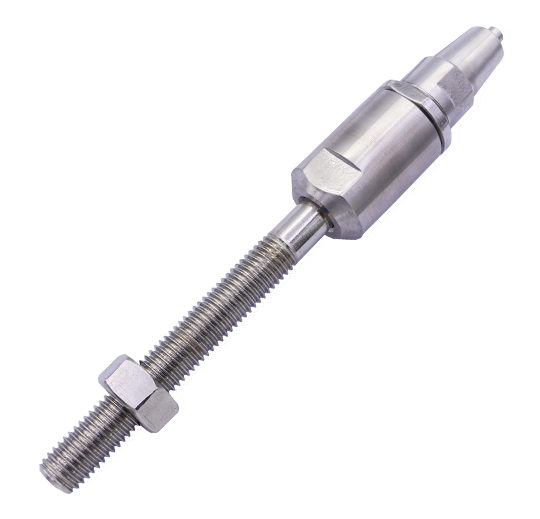

S1011TP Swageless with external threads (Right hand thread)

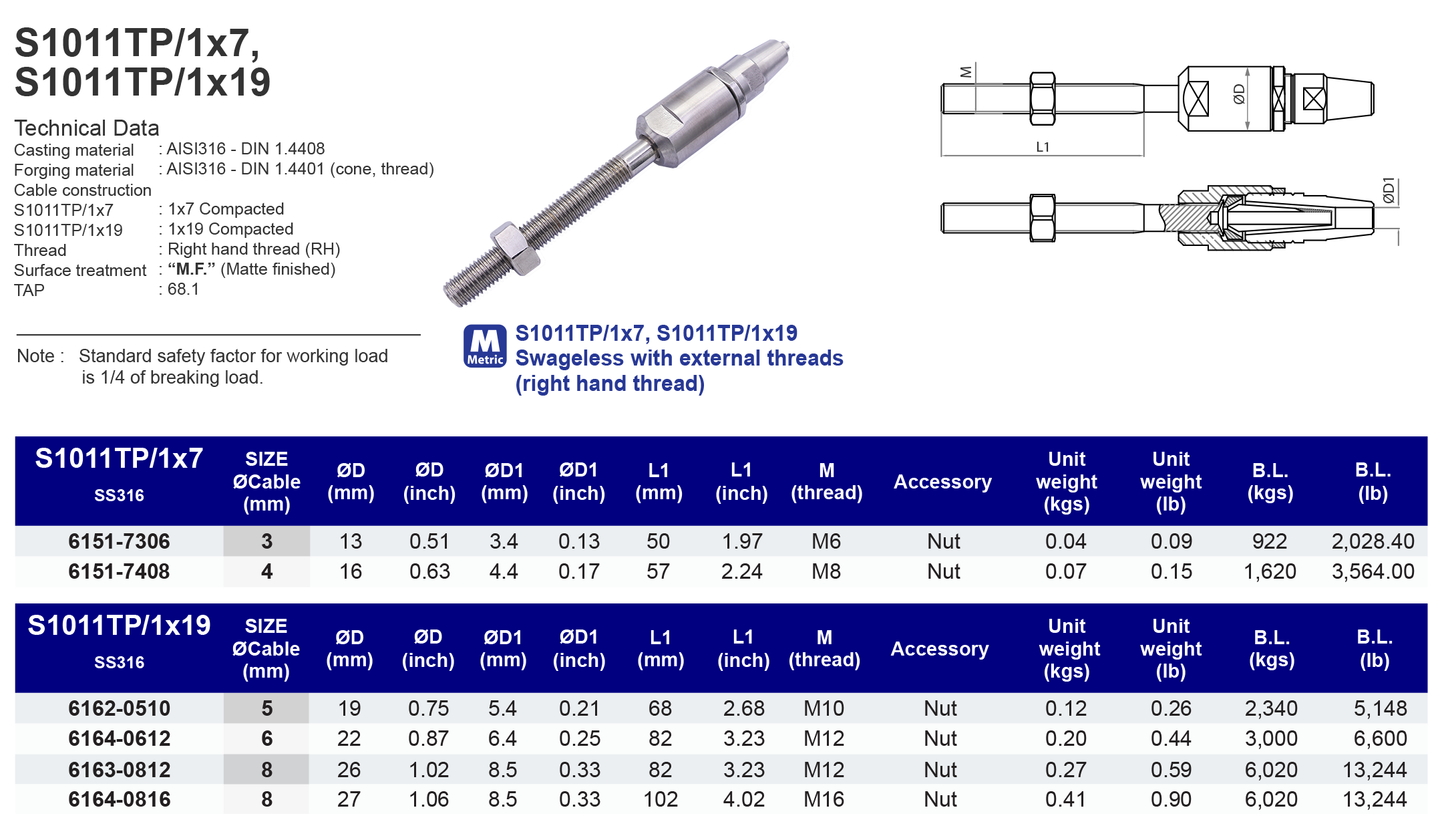

Technical Data:
Casting material : AISI316 - DIN 1.4408
Forging material : AISI316 - DIN 1.4401 (cone, thread)
Cable construction
S1011TP/1x7 : 1x7 Compacted
S1011TP/1x19 : 1x19 Compacted
Thread : Right hand thread (RH)
Surface treatment : “M.F.” (Matte finished)
TAP : 68.1

DATA SHEET DOWNLOAD
