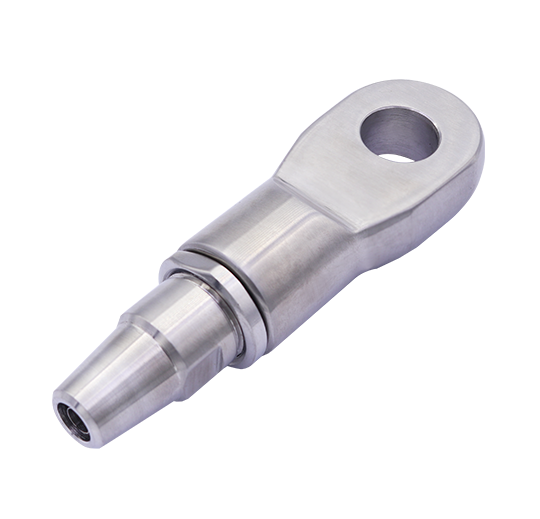

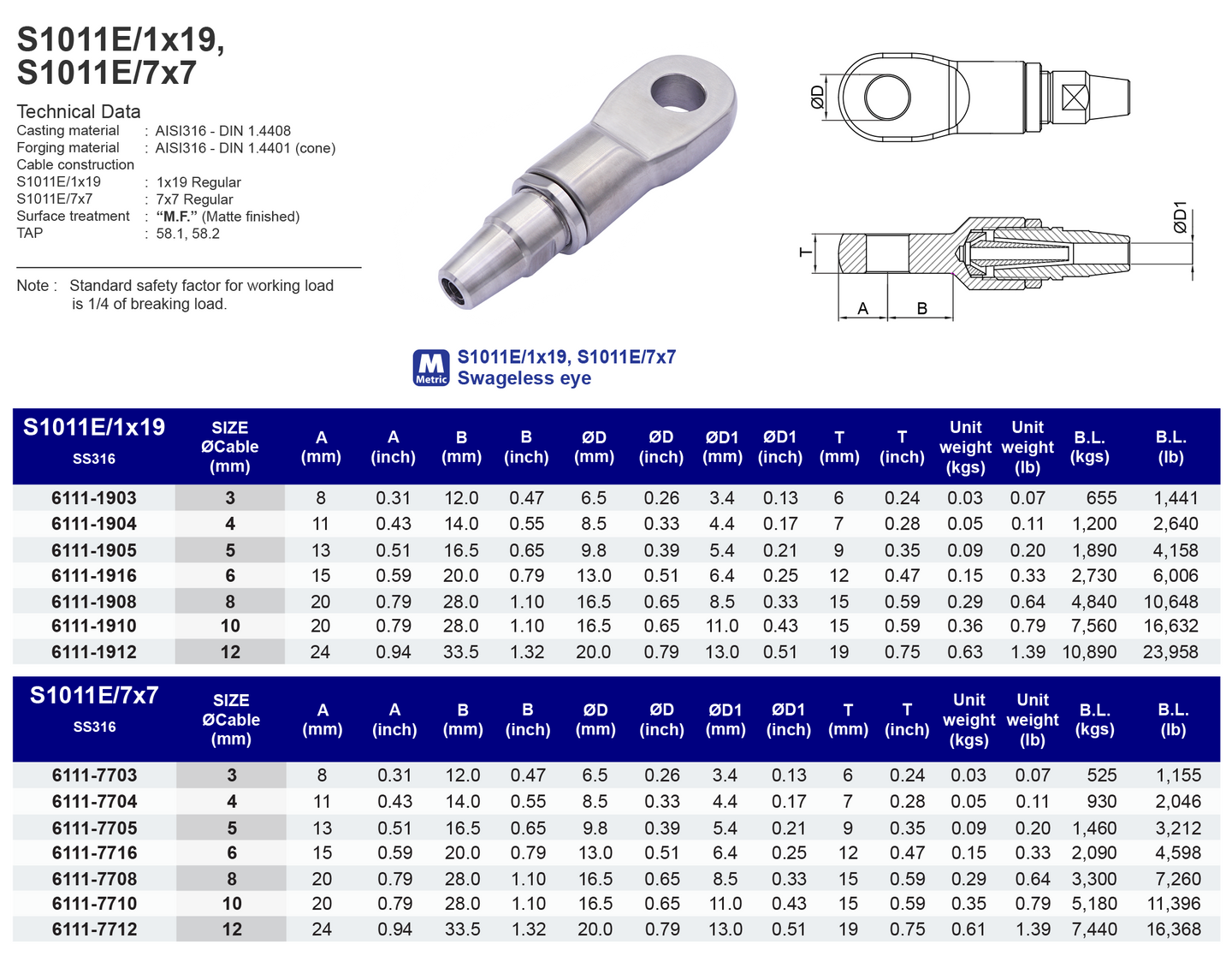

S1011E/1x19, S1011E/7x7 Swageless eye

Technical Data:
Casting material : AISI316 - DIN 1.4408
Forging material : AISI316 - DIN 1.4401 (cone)
Cable construction
S1011E/1x19 : 1x19 Regular
S1011E/7x7 : 7x7 Regular
Surface treatment : “M.F.” (Matte finished)
TAP : 58.1, 58.2 Note : Standard safety factor for working load
is 1/4 of breaking load.
