Description
Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: S7370 - Link - Forged
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
S7370

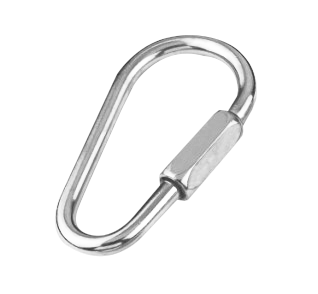

Pear quick link
316 ss
| SS316 | Size | B (mm) | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 67370005 | 5 | 37 | 5 | 70.5 | 13.0 | 0.02 | 510 |
| 67370006 | 6 | 42.5 | 6 | 82.5 | 14.5 | 0.04 | 680 |
| 67370008 | 8 | 53 | 8 | 100 | 17.5 | 0.08 | 1,247 |
| 67370010 | 10 | 63 | 10 | 118 | 20.5 | 0.14 | 1,700 |
| 67370012 | 12 | 76 | 12 | 144 | 23.5 | 0.22 | 1,871 |
| SS316 | Size | B (inch) | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 67370005 | 3/16" | 1.46 | 3/16" | 2.78 | 0.51 | 0.05 | 1,122.00 |
| 67370006 | 1/4" | 1.67 | 1/4" | 3.25 | 0.57 | 0.08 | 1,496.00 |
| 67370008 | 5/16" | 2.09 | 5/16" | 3.94 | 0.69 | 0.18 | 2,743.40 |
| 67370010 | 13/32" | 2.48 | 13/32" | 4.65 | 0.81 | 0.31 | 3,740.00 |
| 67370012 | 1/2" | 2.99 | 1/2" | 5.67 | 0.93 | 0.48 | 4,116.20 |
