Description

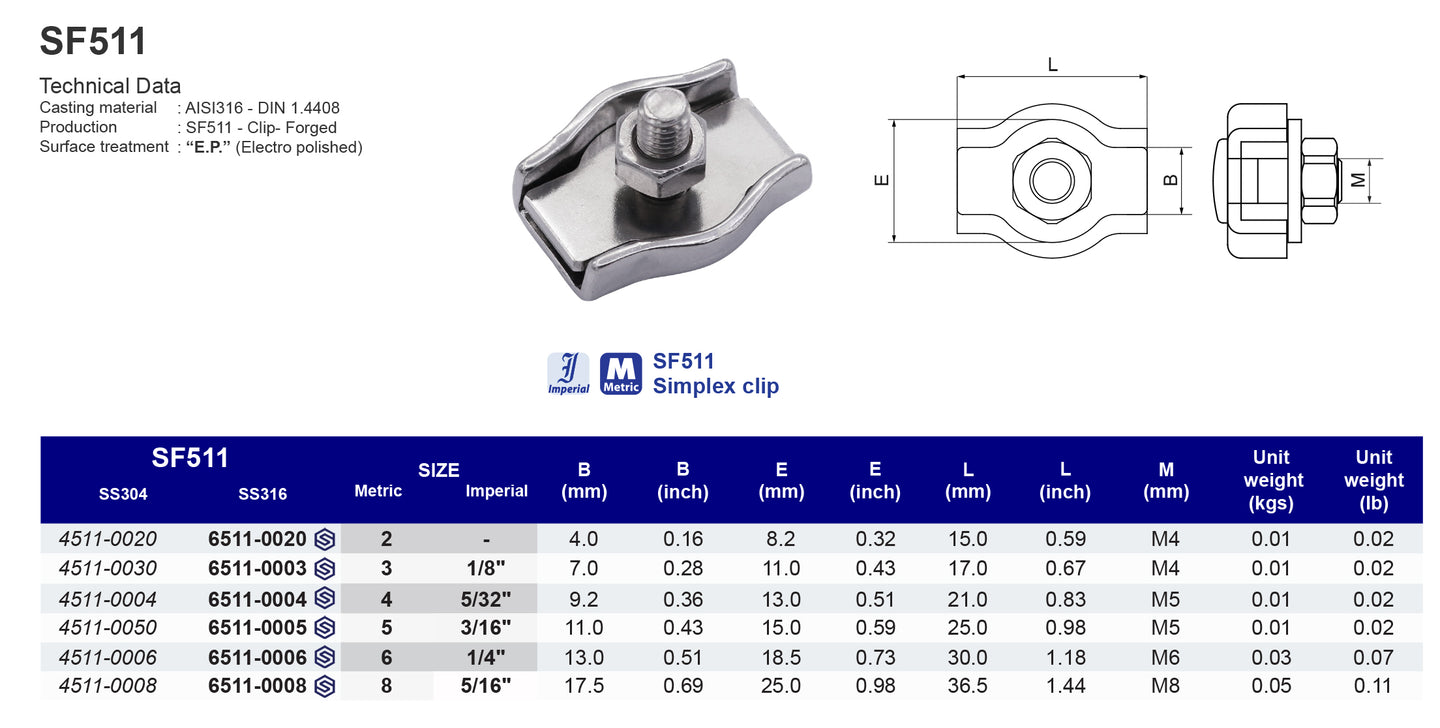

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: SF511 - Clip - Forged
Surface Treatment: “E.P.” (Electro polished)
Model
SF511

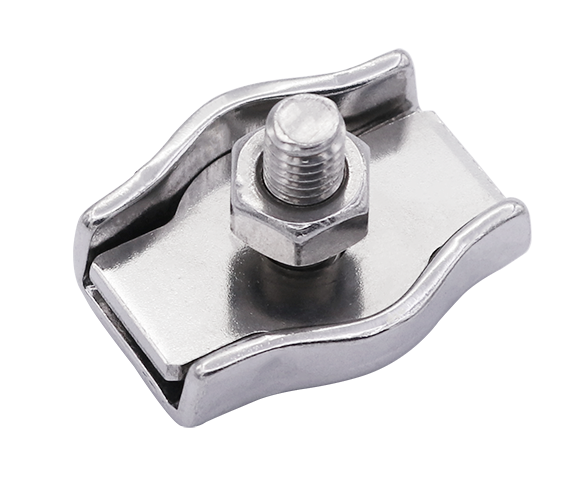

Simplex clip
316 ss
| SS316 | Metric | Imperial | B (mm) | E (mm) | L (mm) | M (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|
| 65110020 | 2 | 3/32" | 4 | 8.2 | 15 | M4 | 0.01 |
| 65110003 | 3 | 1/8" | 7 | 11 | 17 | M4 | 0.01 |
| 65110004 | 4 | 5/32" | 9.2 | 13 | 21 | M5 | 0.01 |
| 65110005 | 5 | 3/16" | 11 | 15 | 25 | M5 | 0.01 |
| 65110006 | 6 | 1/4" | 13 | 18.5 | 30 | M6 | 0.03 |
| 65110008 | 8 | 5/16" | 17.5 | 25 | 36.5 | M8 | 0.05 |
| SS316 | Metric | Imperial | B (inch) | E (inch) | L (inch) | M (mm) | Unit weight (lb) |
|---|---|---|---|---|---|---|---|
| 65110020 | 2 | 3/32" | 0.16 | 0.32 | 0.59 | M4 | 0.02 |
| 65110003 | 3 | 1/8" | 0.28 | 0.43 | 0.67 | M4 | 0.02 |
| 65110004 | 4 | 5/32" | 0.36 | 0.51 | 0.83 | M5 | 0.02 |
| 65110005 | 5 | 3/16" | 0.43 | 0.59 | 0.98 | M5 | 0.02 |
| 65110006 | 6 | 1/4" | 0.51 | 0.73 | 1.18 | M6 | 0.07 |
| 65110008 | 8 | 5/16" | 0.69 | 0.98 | 1.44 | M8 | 0.11 |
