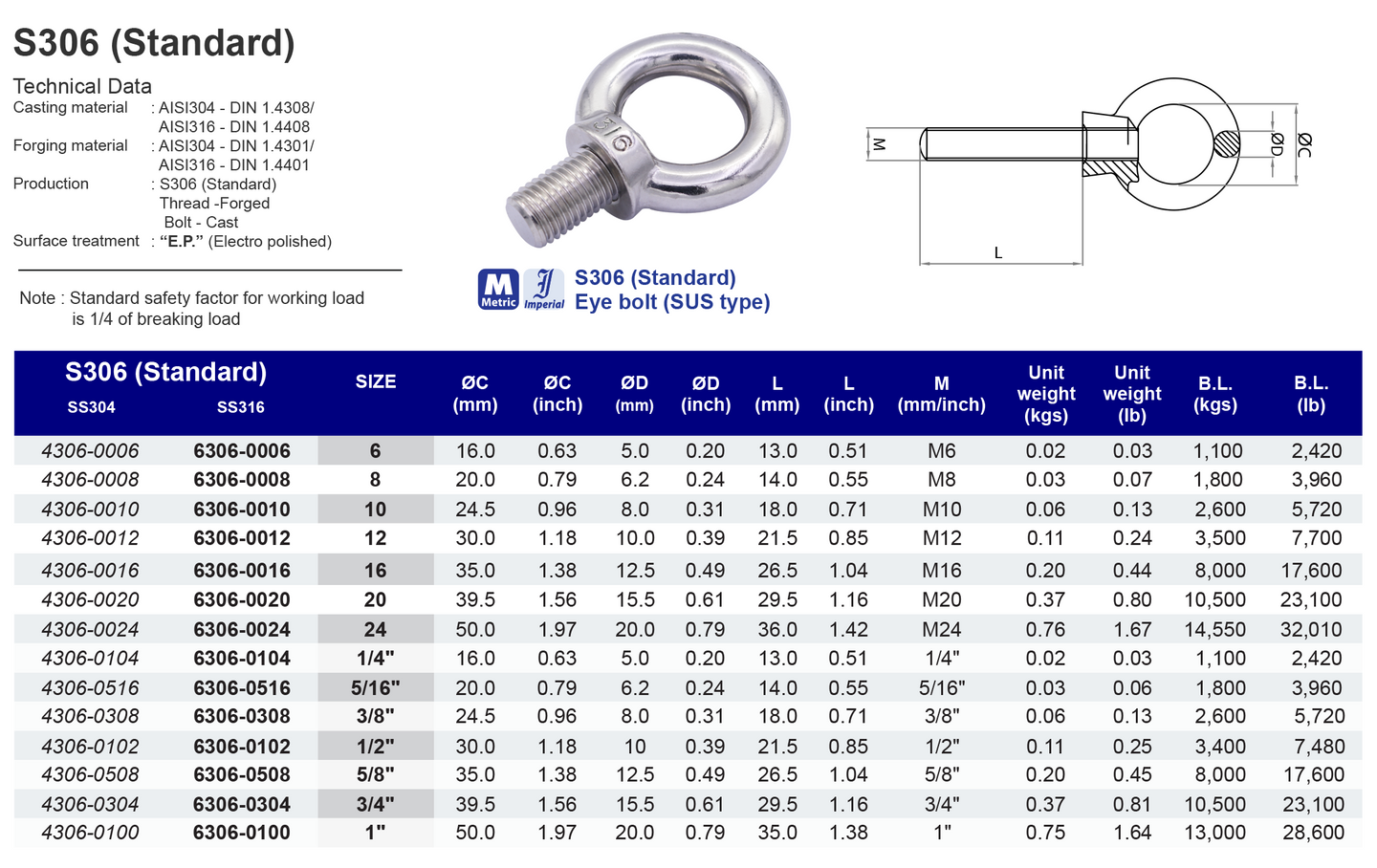

Technical Data:
Casting Material: AISI304 - DIN 1.4308/
AISI316 - DIN 1.4408
Forging Material: AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production: S306 - (Standard) Thread - Forged
Bolt - Cast
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
